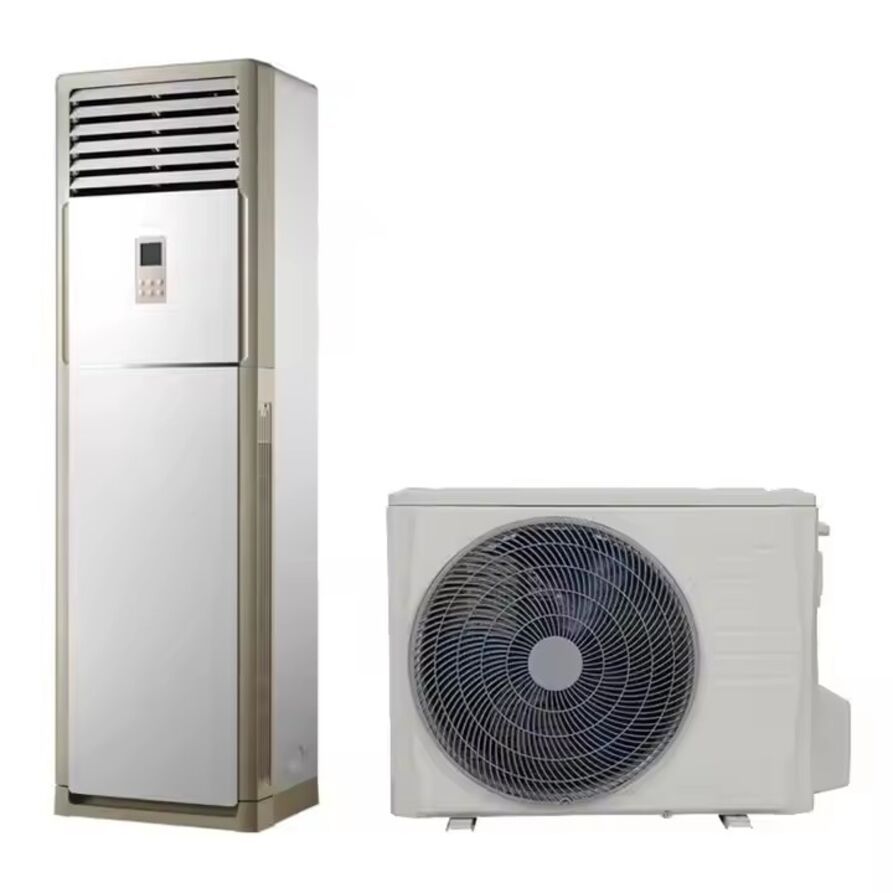

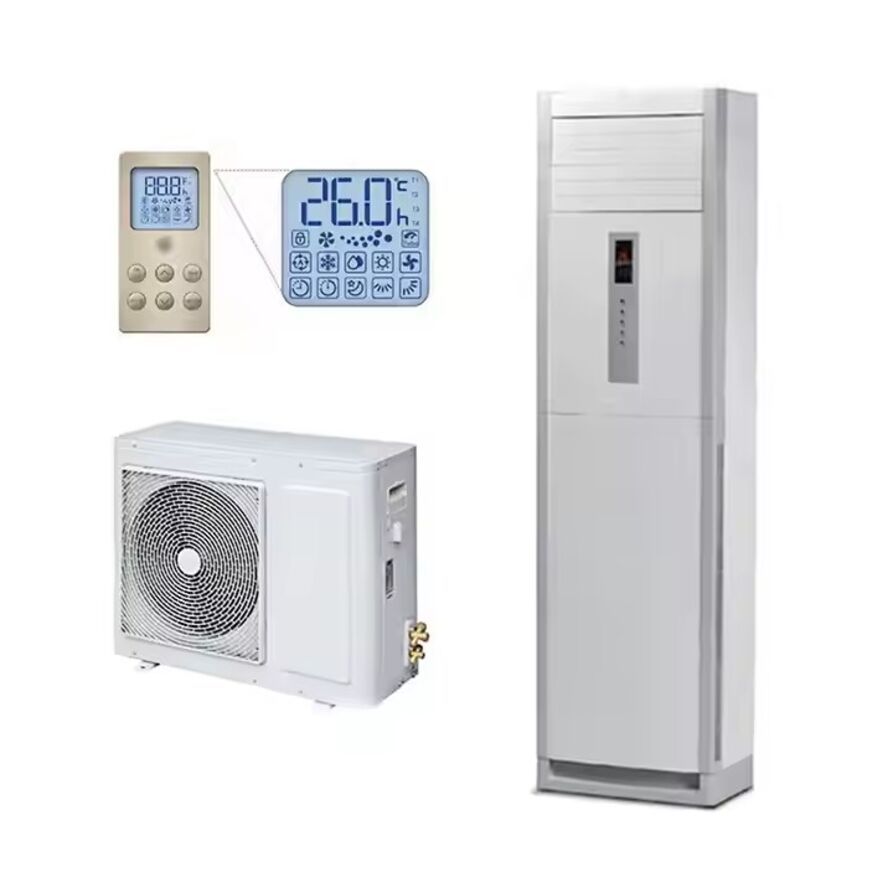

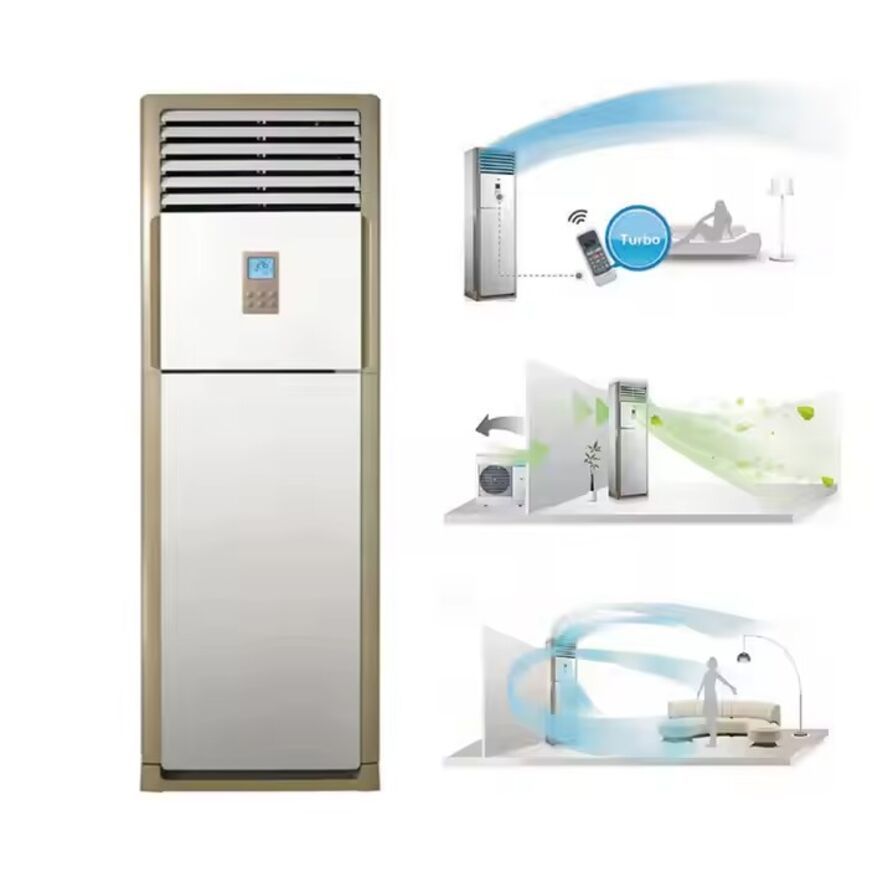

Top Notch Professional Floor Mounted Fan Coils for Superior Heating and Cooling

Material of air supply duct：Galvanized $heet

Corrosion resistance and durability：Higher

Operating Voltage：230 VAC

Noise level:Low

Application area:Hotels

Installation method:Floor Standing

Usage status:New

Contact sales

Product Introduction

​

Model                      FCU 34 51 68 85 102 136 170 204 238
Air flow H m3/h 340 510 680 850 1020 1360 1700 2040 2380
M m3/h 255 383 510 638 765 1020 1275 1530 1785
L m3/h 170 255 340 425 510 680 850 1020 1190
Total cooling capacity * H W 1800 2700 3600 4500 5400 7200 9000 10800 12600
M W 1440 2160 2880 3600 4320 5760 7200 8640 10080
L W 1170 1755 2340 2925 3510 4680 5850 7020 8190
Sensible cooling capacity* H m3/h 1307 1961 2615 3268 3922 5229 6537 7844 10300
M m3/h 1177 1765 2353 2942 3530 4706 5883 7060 8500
L m3/h 1059 1588 2118 2647 3177 4236 5295 6354 7460
Heating capacity* H W 2700 4050 5400 6750 8100 10800 13500 16200 18900
M W 2160 3240 4320 5400 6480 8640 10800 12960 15120
L W 1857 2633 3510 4388 5265 7020 8775 10530 11340
Standard external pressure Pa 12 12 12 12 12 12 12 12 12
Power input 12Pa W 35.2 46 57.4 69 86 123 160 189 228
30Pa W 39.5 55 66.9 82 100 136 175 211 247
50Pa W 49.5 59 85.4 93 108 155 188 236 297
Sound pressure Level** 12Pa dB(A) 37 39 41 43 45 46 48 50 52
30Pa dB(A) 40 42 44 46 47 48 50 52 54
50Pa dB(A) 42 44 46 47 49 50 52 54 56
Net weight kg 10.5 14.6 16 16.5 18.5 23.5 25.5 30.5 35.5
Water flow rate m3/h 0.4 0.51 0.71 0.92 1.05 1.4 1.75 2.1 2.5
Water pressure drop kPa 20 20 25 30 35 40 40 45 50
Water connections Inch RC 3/4
Drain pipe Inch RC 3/4
Fan motor quantity Nr. 1 1 1 1 1 2 2 2 2
Fan quantity Nr. 1 2 2 2 2 3 4 4 4
Max. working pressure Mpa 2
Power supply / 220V/1Ph/50Hz

​
